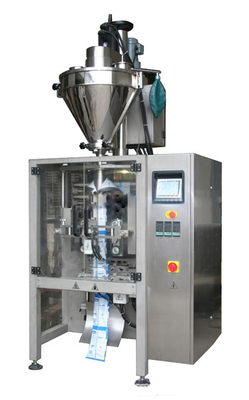

Automatic soft bag packing machine

产品详情

Product Introduction:

This product is suitable for packaging powder materials: milk powder, rice powder, starch, protein powder, soybean milk powder, sesame powder, milk tea powder, monosodium glutamate, salt, etc.

Performance and Features:

· Full computer touch screen control, human-machine interface, simple and convenient operation, simple product replacement, fault display system, easy and quick maintenance.

· The latest screw head is used for filling materials, especially suitable for powder with poor fluidity, with high measuring accuracy and fast speed.

· Spiral accessories can be replaced to facilitate the adjustment of packaging specifications.

· Servo motor is used to control the drawing power, making the drawing easier and controlling the bag length accurately.

· The horizontal seal is driven by servo motor, so that the operation is no impact, low noise, the opening stroke can be controlled at will, the sealing pressure can be adjusted at will, and it can be applied to all kinds of thickness and complex packaging materials.

· It can automatically complete rolling film bag making, material metering and filling, packaging bag sealing, printing date, and other optional functions including bag, European hook hole, hand holding hole, folding Angle, nitrogen filling, cooling, long bag, etc.



Equipment model

JCL-220

JCL-420

JCL-520

JCL-620

JCL-820

Pack the nose

15-26L

50L

      60L

70L

90L

Packaging range

1-100g

100-1000g

500-2000g

1000-5000g

5000-10000g

Packaging accuracy

±0.3-1%

Packing speed

25-45 bag/min

20-40 bag/min

15-30 bag/min

10-20 bag/min

Width of the bag

<   100

<   200

<   250

<   300

<400

The length of the bag

<   200

<   300

<   320

<   350

<450

The largest film width

<   220

<   420

<   520

<   620

<820

The thickness of the thin film

0.04-0.08

0.08-0.12

0.12-0.16

Use the power supply

380v   /   50Hz

The engine power

3 Kw

3.7 Kw

4.2 Kw

4.7Kw

5.5Kw

Work pressure

0.4-0.6 Mpa

Gas consumption

100L/min

150L/min

180L/min

210L/min

250L/min

The weight

350 kg

600 kg

750 kg

850 kg

1000kg

Installation dimensions

1.0x0.8x2.1

1.2x1.1x2.5

1.5x1.3x2.7

1.7x1.4x2.8

1.9x1.6x3.0

Bag bag type

Back sealing bag (pillow bag), pin bag, self-supporting bag, even bag
